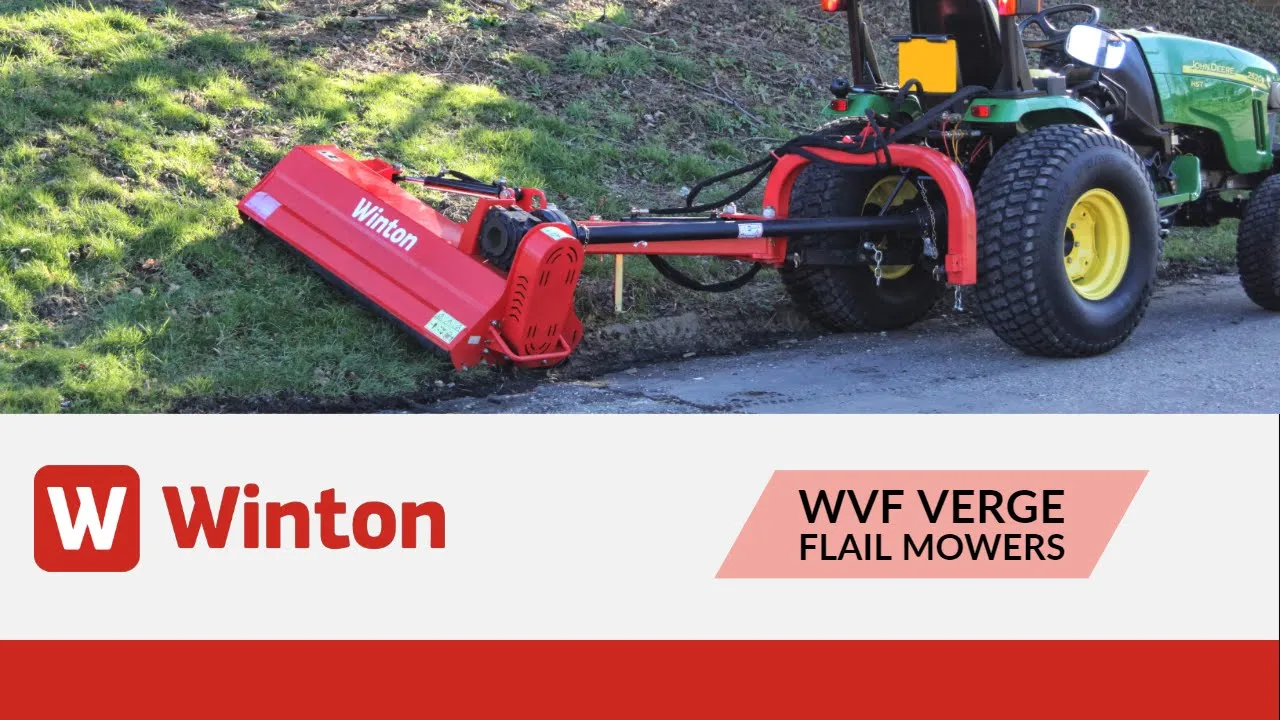

Winton WVF125 1.25m Tractor Verge Flail Mower

The WVF125 Winton 1.25m Verge Flail Mower is perfect for tackling overgrown areas. This mower can be hydraulic offset to the side and angled to access hard to reach areas. This requires 2 double acting spools for the 4 hoses. These then operate the horizontal movement and the vertical tilt of the cutting head. This means the flail is ideal for cutting up to and around trees when used horizontally. When tilted up or down the flail will cut slopes on verges or ditches. Finally, it can be set to cut vertically for the sides of lower hedgerows.

Fitted with heavier hammer flails and gearbox for tougher grass and weed control, this flail can then be used when grass and weeds are at a more manageable length to give a fine grass finish when used regularly. Several hammer style blades are mounted to the cylindrical rotor in a spiral layout. This action is most efficient and creates finer cuttings. It is also better suited to uneven ground types than conventional rotary and topper mowers. The mower is belt driven, there are 3 drive belts which give power to the blade rotor shaft.

This machine benefits from an adjustable rear roller, which can then be adjusted up or down along with the tractor top link arm to change finish and cutting height. The rear roller helps to avoid blade scalping on uneven areas. The mower also has 2 height adjustable skids to tailor the cutting height, helping to avoid the mower scalping and leave an even cut when mowing.

The Winton 1.25m Verge Flail Mower can be attached to the 3 point linkage of a range of small or compact tractors.

Features:
• Offset function suitable for UK roads
• Hydraulically adjustable head positioning for precision control
• Cuts upwards 90 degrees vertically or downwards 50 degrees
• Flail head cuts outside the tractor wheelbase
• Adjustable roller for cutting-height range of 3-8cm
• Spirally arranged hammer blades for an efficient cut
• NEW 2024 model with upgraded efficiency, build quality and durability

Important: Please check that your tractor has 2 double-acting spool values in order to connect up the four hydraulic lines to power this machine.
