Introduction to SCH HBU900 Towed Water Bowser

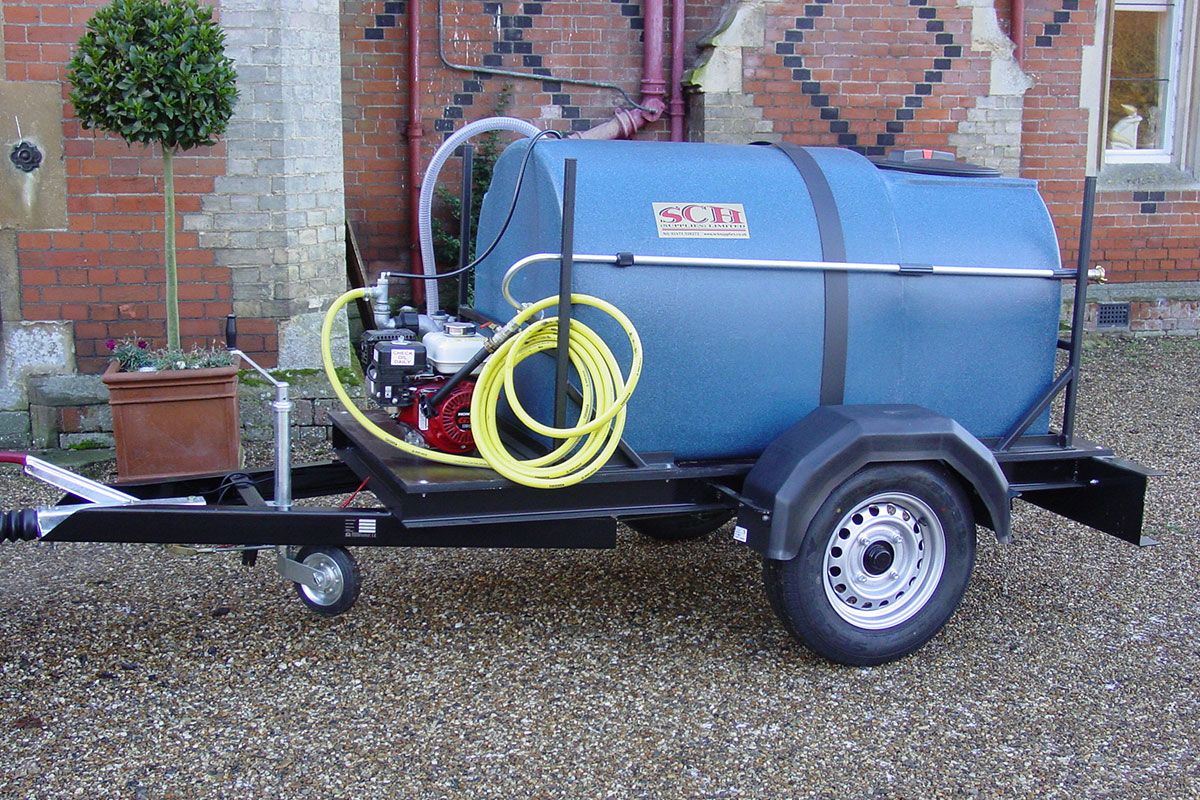

The SCH HBU900 is a substantial towed water bowser designed for large-scale water transportation and application, making it ideal for agricultural, landscaping, and industrial environments. This model is not intended for highway use and is equipped with key features including two types of pumps for different operational needs.
Specifications of the SCH HBU900
Dimensions: Length 3000mm (118”), Width 1500mm (59”), Height 1300mm (51”).
Tank Capacity: 900 liters (200 gallons).
Weight: Empty weight is 250kg, and when full it reaches approximately 1150kg.
Pumps
- Electric Pump: 12-volt DC diaphragm pump capable of up to 19 liters per minute.
- Petrol Pump: 2” Honda centrifugal pump capable of up to 450 liters per minute.
Safety Instructions for SCH HBU900
Operating the SCH HBU900 comes with specific safety protocols to ensure secure usage and transportation:
- Utilize only by trained operatives, and ensure the unit is correctly attached to the towing vehicle with working taillights.
- Do not travel or corner at high speeds due to the risk of water surging; baffles are included to minimize this risk.
- Avoid pointing the lances at people and ensure that all hoses and lances are securely fastened during transport.
- Follow specific guidelines for the petrol engine model, including careful refueling and adherence to pump manual safety instructions.
- Always check the unit for any visual faults before use, and do not operate the pump without water.
Preparation and Operating Instructions
Preparation
Prime the pump and fill the tank with clean water and any required chemicals, ensuring thorough mixing.
Operation
Start the pump following the specific instructions for the type of pump you are using (Electric or Petrol).
Adjust the engine speed and pressure according to your specific needs.
Open the red tap on the hose to begin water or chemical application.
Ensure the red-handled bypass valve tap is closed unless otherwise needed.
Liquid Feed Instructions
Follow manual instructions carefully when using liquid feed.
For additives in powder form, pre-mix them in a separate container and slowly add to the tank ensuring proper dissolution.
Routine Maintenance
- Daily check and maintain engine oil levels.
- Keep the suction hose filter clean to ensure proper function.
- Regularly inspect the chassis and secure wheel nuts to prevent any operational issues.
Important Notes
Handling the tanker involves care due to its 'live load' characteristics; excessive speeds and cornering can lead to safety issues.
When using pumps, particularly the petrol model, proper setup and operational procedures as per the engine manual are critical to safe and efficient use.
Always ensure protective measures against frost and keep the tanker and its components well-maintained.
Conclusion
The SCH HBU900 Towed Water Bowser is a versatile and robust unit designed for non-highway applications requiring substantial water transport and dispersal. Adhering to the operational guidelines and routine maintenance will ensure the longevity and safe operation of this unit across various large-scale water management tasks.
