Powerful Leaf Vacuum Manual - SCH PSU

Introduction to SCH PSU Professional Leaf Suction Unit

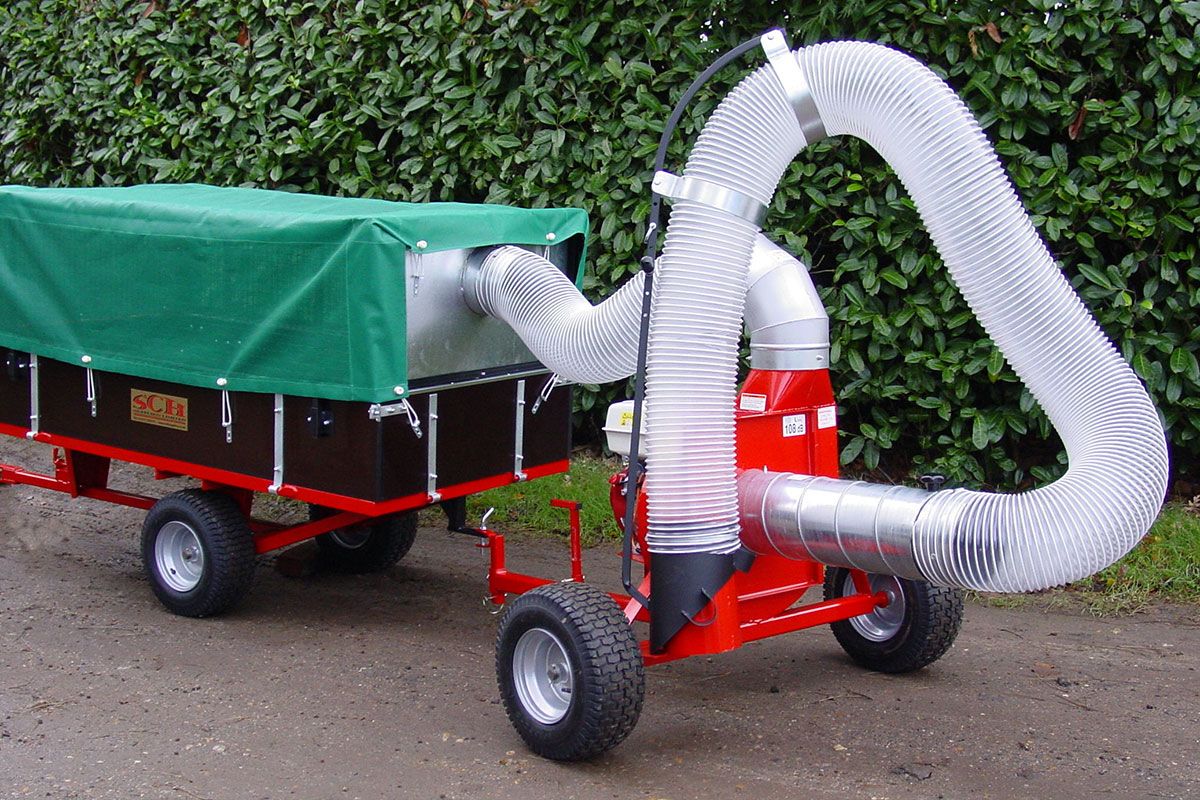

The SCH PSU is a robust, professional-grade leaf suction unit designed to tackle large-scale leaf collection tasks with ease. Featuring a potent 9hp Honda engine, this unit is mounted on a two-wheel chassis for easy towing. It is ideal for use with a specially adapted leaf collecting trailer, enhancing efficiency in clearing drives, road edges, and expansive areas of fallen leaves.

Essential Specifications of SCH PSU

• Overall Width: 1320mm (52.5”)
• Overall Length: 1500mm (60”)
• Weight: 180kg
• Engine Power: 9hp Honda engine
• Suction Hose Diameter: 200mm (8”)
• Suction Hose Length: 3 metres
• Discharge Hose Length: 1000mm (39”)

Safety Instructions for SCH PSU

• Pre-Operation Checks: Ensure guards are in place, and hoses are securely connected before operation. Avoid starting adjustments or clearing blockages with the engine running.
• Material Handling: This unit is only for vegetable matter; avoid sucking up mineral and iron objects.
• Exhaust and Engine: Be aware that the engine and exhaust will heat up during use.
• Protective Gear: Operators must wear eye and ear protection.
• Emergency Shutdown: Familiarity with the unit's shutdown procedure in emergencies is crucial.

Clearing Blockages in SCH PSU

• Engine Shutdown: Always switch off the engine before attempting to clear any blockages.
• Fan Housing: Open the front plate of the fan housing to remove the obstruction, then securely replace the plate.
• Suction Hose: If the suction hose is blocked, never insert hands or objects inside. Instead, create a ‘wave’ movement with the fan running to clear the blockage.

Operational Guide for SCH PSU

• Unit Connection: Attach the unit to your towing vehicle and ensure the discharge hose is securely fixed.
• Engine Speed: Increase the engine to full revolutions before beginning leaf collection.
• Leaf Collection: Introduce the suction nozzle to the fallen leaves cautiously to avoid blocking the inlet. If engine power drops, decrease the suction rate until full power is regained.
• Handling Wet Material: When dealing with wet leaves, you might find an accumulation at the bottom curve of the suction hose. Manually shake the hose to disperse the blockage.

Additional Tips for Efficient Operation

• Working in Tandem: For optimal efficiency, coordinate with a handheld blower to direct leaves from flower beds and hard-to-reach areas towards the path of the suction unit.
• Fan Belt: The fan belt is driven independently and not directly attached to the crankshaft, enhancing the unit's durability.
• Maintenance: Regular checks and maintenance are crucial. After use, ensure the machine is cleaned, dried, and lubricated as instructed to maintain peak performance.

Conclusion

The SCH PSU Professional Leaf Suction Unit is a powerful tool for efficiently managing leaf accumulation on large properties, along drives, and in commercial spaces. When coupled with a comprehensive approach to safety and regular maintenance, this unit can significantly streamline leaf cleanup tasks, reducing labor hours and enhancing cleanliness in work areas.

Important:

Please refer to the manufacturer's official manual before using this product or carrying out repairs.
