Introduction to SCH TRCL Leaf Vacuum for Ride-on Mower

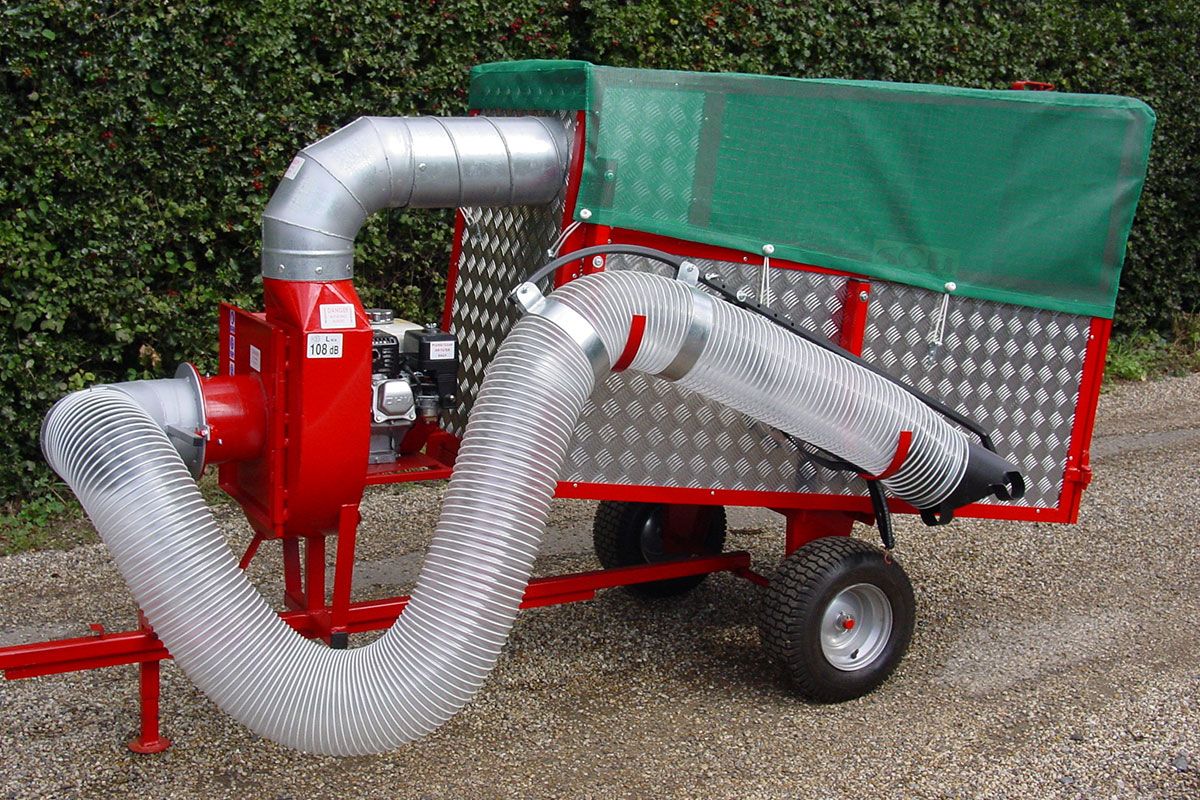

The SCH TRCL is a high-capacity trailer designed to enhance the efficiency of collecting grass and leaf waste when used in conjunction with twin-cut rear discharge tractors. This unit, equipped with a powerful Honda 5.5hp motorized fan, effectively increases the collection capacity, allowing for broader area coverage with less frequent emptying.
Key Specifications of SCH TRCL Leaf Vacuum
- Overall Dimensions: Width 1168mm (46”), Length 2794mm (110”), Height 1442mm (56”)
- Weight: 162kg
- Fan Blow Diameter: 530mm (21”)
- Engine: Honda 5.5hp with manual start
- Suction/Delivery Hose Diameter: 200mm (8”)
Safety Instructions for SCH TRCL Leaf Vacuum
- Fan Safety: A cut-out switch prevents engine start with the door open. Ensure the fan door is securely closed prior to starting.
- Attachment and Hoses: Confirm secure attachment of the trailer to the towing vehicle, and check that all hoses are fixed in place.
- Vegetable Matter: The unit is intended solely for vegetable matter; avoid mineral and iron objects.
- Engine and Exhaust: Acknowledge that the engine and exhaust will heat during operation. Avoid touching.
- Adjustments: Do not attempt adjustments, remove guards, or clear blockages with the engine running.
- Hose Safety: Keep arms out of inlet and outlet orifices with the engine running, and replace any damaged discharge hoses promptly.
Preparation for Use of SCH TRCL Leaf Vacuum
Utilize the cord at the collector's front, pulling and securing it lightly. Position the web strap along the trailer's base, extending the remainder to the rear top, securing it tightly before closing doors and fixing the netting cover.
Operational Advice for SCH TRCL Leaf Vacuum
- Speed: Operate at a low forward speed for best results.
- Engine Load: Should you notice a decrease in engine revolutions, halt collection momentarily to allow the engine to regain its full power.
Emptying the Collector of SCH TRCL Leaf Vacuum
Open the rear netting and swing doors. Detach the top strap and pull to expel the collected wedge of leaves, with some minor residual needing raking out.
Clearing Blockages in SCH TRCL Leaf Vacuum
Internal & Fan Blockages:
- Turn off both the tractor and fan engines.
- Disconnect the hose and open the door net to remove any obstruction.
Hose Blockages:
If the wander hose becomes blocked, straighten it out and introduce a wave motion to clear, with the fan running.
Conclusion
By adhering to the operational guidelines and safety precautions outlined, users can maximize the SCH TRCL's utility efficiently and safely, achieving significantly improved collection capacities and labor savings.
Important:
Please refer to the manufacturer's official manual before using this product or carrying out repairs.
