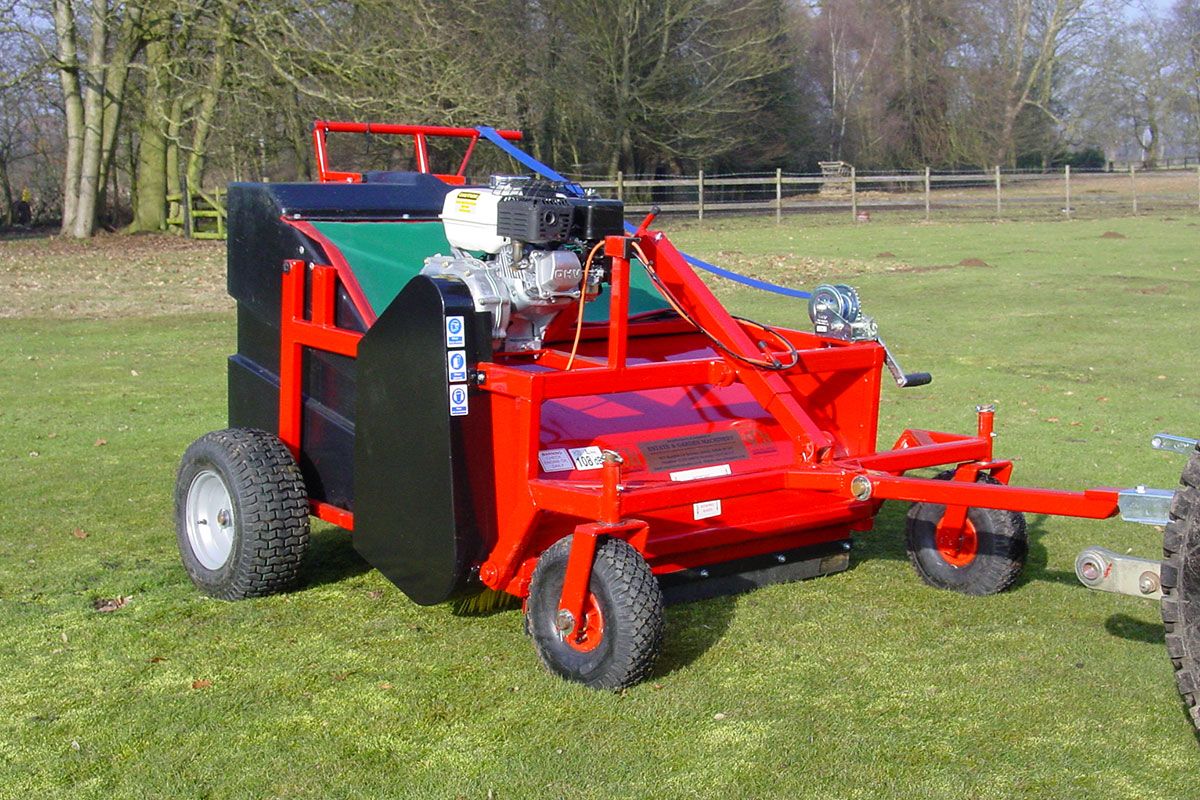

Introduction to the Equestrian Powered Brush (EPB)

In the world of equestrian care, maintaining a clean and healthy environment is vital. The Equestrian Powered Brush (EPB) emerges as a game-changer for small equestrian centers and private paddock owners striving for pristine paddocks. Let’s delve into the features, usage, and maintenance of this innovative tool that ensures your equestrian space is free of droppings, promoting healthy grass and reducing disease risk.

Key Features of the EPB

• Engine and Power: Powered by a robust 5.5Hp Honda HGX160 engine, the EPB is equipped with a 2.1 reduction gearbox and a centrifugal clutch that stops the brushes when the engine slows, facilitating ease of movement across the paddock.
• Brush Mechanics: With four rows of height-adjustable brushes that rotate at variable speeds, the EPB efficiently sweeps droppings into a rot-proof collecting box at the rear.
• Flexibility and Capacity: Besides its primary use, the EPB can tackle other sweeping jobs like collecting leaves, thanks to its 270-liter catcher capacity. A 50mm ball hitch comes standard for towing, with the option for a clevis hitch available upon request.
• Dimensions: The overall width stands at 1350mm, with a working width of 900mm, allowing for effective coverage across paddocks.

Usage of the EPB

• Operating the EPB: Starting the EPB involves switch activation, fuel on, choke engagement, throttle adjustment, and pulling the starter cord. Simple throttle adjustments help in smooth operation.
• Brush Height Adjustment: For optimal performance, adjust the brush height to 12-18 mm above the ground. This is critical for the longevity of the brushes and effectiveness in collection.
• Changing Brushes: When brush wear is evident, they can be replaced by removing the catcher box for accessibility, unbolting the worn brushes, preparing the new brushes, and securing them in place.

Maintenance of the EPB

• Lubrication and Cleaning: Regular maintenance involves fortnightly lubrication of the rear caster tubes and wheels, oiling the brush adjustment mechanism, and annual maintenance of the main bearings. Power wash the brushes regularly to prevent mud and debris clog.
• Engine Care: Utilize only unleaded petrol and adhere to the manufacturer’s manual for engine maintenance.
• Emptying Collection Box: A straightforward process involving engine shutdown, winch operation to lift the box, and careful emptying onto a designated disposal area or bag for removal.

Safety Instructions for Operating the EPB

• Operator Training: Only individuals with training should operate the EPB.
• Traveling and Transport: Movement should not exceed speeds of 5mph, and the power unit must be off during transport and emptying.
• Protection and Caution: Ear defenders are recommended, and no individual should be on the catcher or reach under the EPB while it is operational.

Conclusion

The Equestrian Powered Brush (EPB) is a testament to innovation in keeping equestrian environments clean and healthy. Its thoughtful design, coupled with robust engineering, makes it an indispensable tool for anyone looking to maintain high standards of cleanliness in their paddocks. Whether it's sweeping droppings or leaves, the EPB stands ready to transform your equestrian care routine, ensuring your grass remains in top condition, and your equine friends are happy and healthy.

Important:

Please refer to the manufacturer's official manual before using this product or carrying out repairs.
